AC Centrifugal Cooling Fan for HVAC

SKU# 3231671014357_25841903


  • translation missing: en.products.product.regular_price $3,322.50
    Unit price per

+ -
Product is available.
Pay With:
All Major Debit/ Credit Cards, Paypal.

Lead Time:

Quantity(Pieces) 1-2 >2
Est. Time(days) 15 To be negotiated

Customization:

Ship to:

Protection:

Trade Assurance Protect your renesent.com orders

On-Time Delivery Guarantee

Refund Policy

For product pricing, customization, or other inquiries:

Contact Supplier Call us Chat Now

Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co,Ltd.

Trading Company

CN 12 YRS

Response Time

<10h

On-time delivery rate

96%

42 Transactions

160,000+

FloorSpace(m²)

QA/QC inspectors

5-15

R&D employees

5-10

Product overview
Centrifugal fans accelerate an air stream using a revolving impeller and are distinguished by their radial, forward-curved, or backward-inclined blade designs. As the air moves toward the ends of the blades and becomes pressure, the speed increases. The air is moved by rotating the blades such that it exits through the outlet at a 90° angle. Similar to a forced draught centrifugal blower, a forced draught centrifugal blower draws air and/or other materials into the intake before rotating to force them out the outlet at a 90° angle and blast the clean or material-filled air, gas, or liquid through the system.
Product Details
Fans are a part of heating, ventilation, and air conditioning (HVAC) systems and are used for air circulation and cooling. The role of fans in HVAC systems is crucial. However, not all cooling or ventilation tasks are carried out by the same kind of fan. The impeller in a casing with a spirally curved contour makes up centrifugal fans. Air is injected into the impeller axially and expelled at the impeller's outer perimeter. The direction of the airflow is centrifugal (or radial direction). Additionally, centrifugal fans have several advantages: excellent energy effectiveness. Centrifugal fans can produce energy with a static efficiency of up to 84 percent when there is constant airflow. These greater levels of efficacy are perfect for supporting larger air systems.

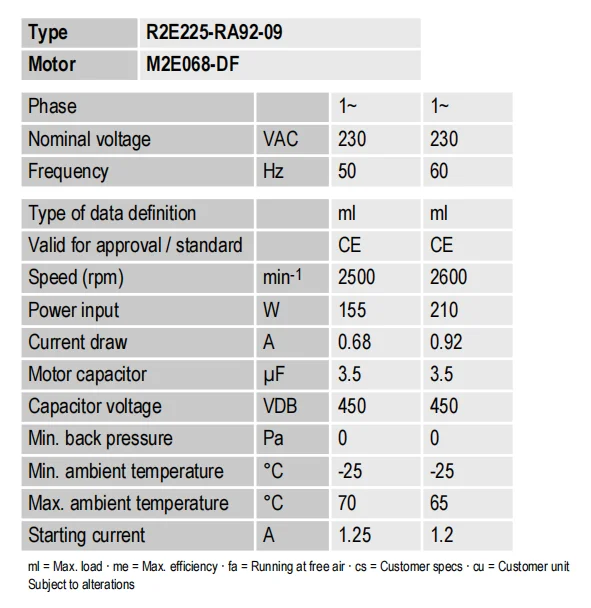

Product Specification

item
value
Type
Other
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Retail, Energy & Mining, air purification, electrical cabinet
Customized support
OEM, ODM
Blade Material
PA6 plastic
Mounting
FREE STANDING
Place of Origin
Germany
Brand Name
ebmpapst
Power
155W
Voltage
230V
Certification
complete certification
Warranty
1 Year
After-sales Service Provided
Online support
Speed
2500 r/min
Electric power consumption
155W
Current
0.68A
Ambient temperature
-25-70C
blade diameter
225mm
voltage
230V
Number of blades
7
Insulation class
F
temperature / °C
-25-70
Motor bearing
Ball bearing

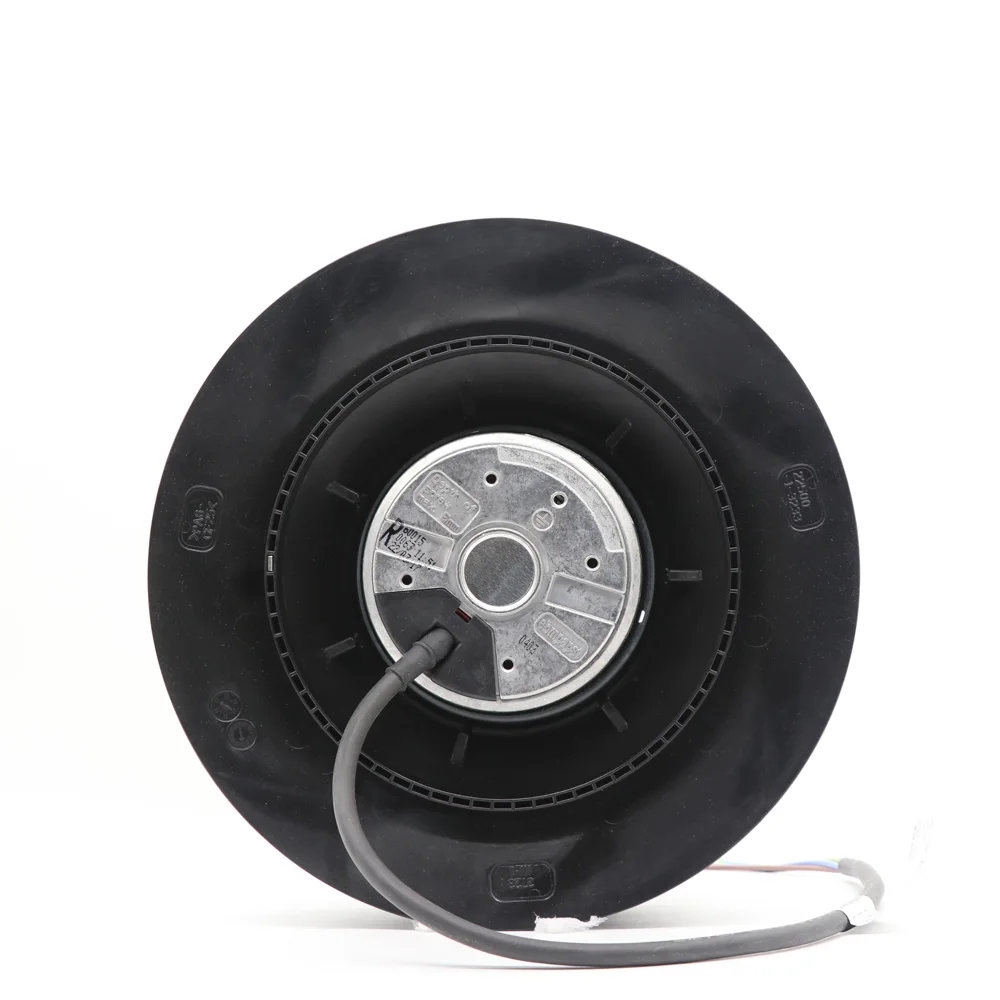

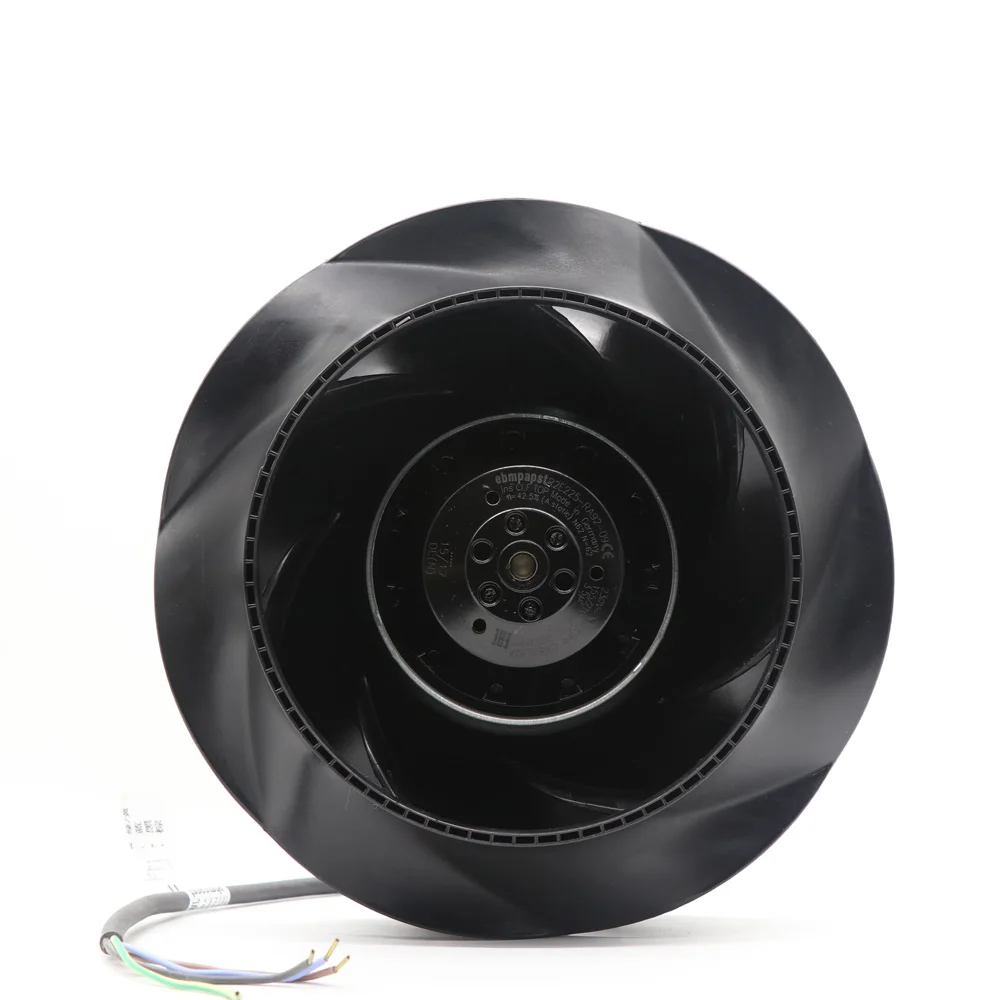

Item Show
Charts
